Fiber Optic Stripping Tools

Fiber preparation is critical for low-loss fiber splicing and termination. Our fiber stripper set covers common stripping requirements for FTTH, LAN, data center and telecom projects, delivering clean, consistent fiber stripping without nicking the 125μm bare glass fiber.

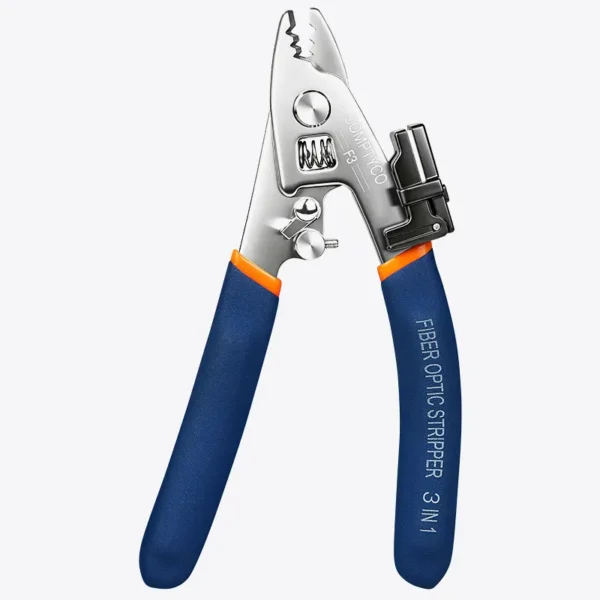

3-Hole Miller Stripper (CFS-3)

The 3-hole fiber stripper is the standard hand tool for fiber optic field work.

• 3 precision laser-drilled holes for multi-layer stripping:
  1. Large hole: strip 1.6–3.0mm outer jacket
  2. Middle hole: strip 900μm buffer layer
  3. Small hole: strip 250μm acrylic coating to expose 125μm bare fiber
• Hardened high-carbon steel jaws, preset dimension, no manual adjustment required
• Ergonomic non-slip TPR handle with safety lock for storage
• Ideal for fiber pigtails, patch cords, loose tube fibers, FTTH and data center splicing jobs
• Benefit: fast manual operation, portable for on-site installation & maintenance

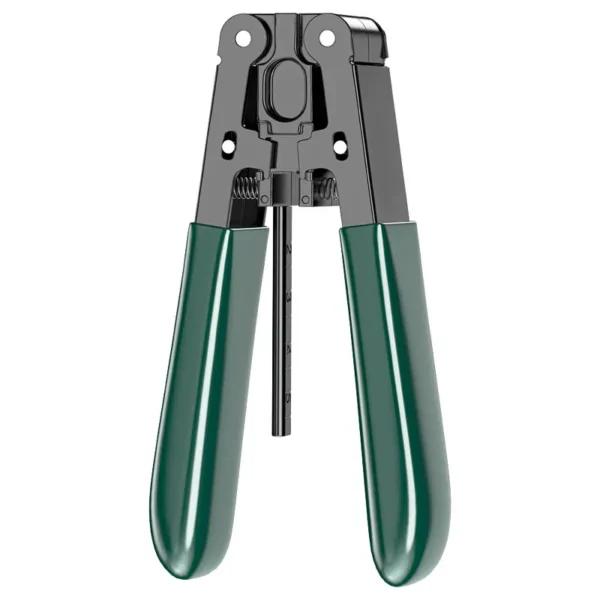

FTTH Drop Cable Stripper

Custom-designed for FTTH butterfly drop cable.

• Precisely slit the outer jacket of flat drop cable, safely cut steel strength members without damaging the inner optical fiber
• Adjustable blade depth to avoid over-cutting
• Lightweight, simple operation for FTTH home wiring, last-mile deployment
• Perfect for quick preparation of indoor drop cables before further stripping with Miller stripper

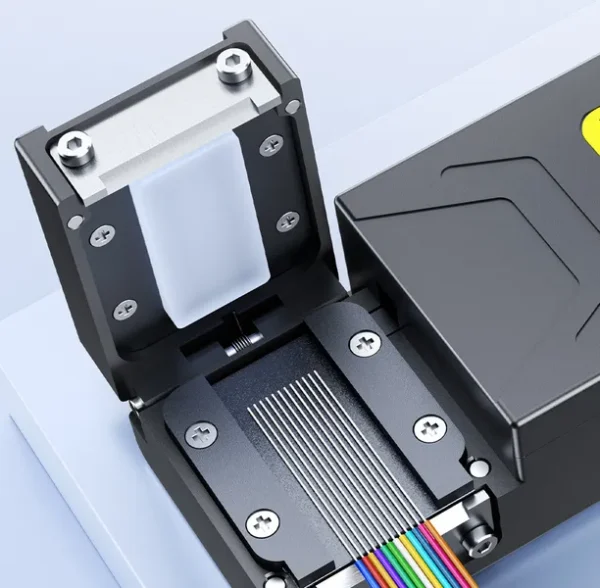

Thermal Fiber Stripper

Thermal stripper removes fiber coating by controlled heating to soften the acrylate coating.

• Produces ultra-clean stripping residue, no coating debris left on bare fiber
• Best choice for ribbon fiber, high-hardness coating fiber, lab and high-precision splicing
• Uniform stripping result, greatly reduces splicing loss
• Note: requires power supply; more suitable for workshop, data center and indoor use rather than field work

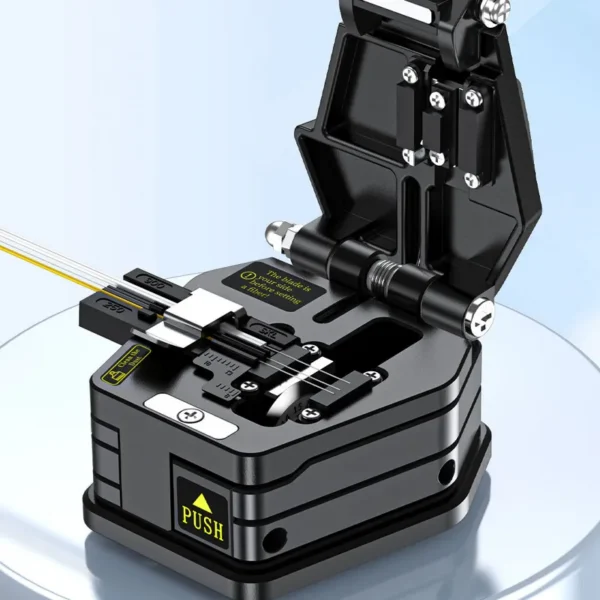

Precision Fiber Optic Cleaver

It creates flat, mirror-like perpendicular fiber end faces to minimize splicing loss after fiber stripping.

• Cleave angle ≤0.5°, delivers clean, burr-free fiber end face without chipping
• Rotatable tungsten carbide blade with multiple cutting positions, long service life up to 48,000 cleaves
• Universal clamp fits 250μm coated fiber and 900μm buffered fiber, compatible with single-mode & multimode fiber
• Built-in waste fiber collector, keeps workplace tidy and avoids safety hazards
• Compact rugged housing, portable for field installation, maintenance and data center cabling
• Simple one-step operation, easy blade replacement and maintenance

Application Scenarios

FTTH deployment, data center cabling, telecom cable splicing, CATV network, fiber repair & testing.
